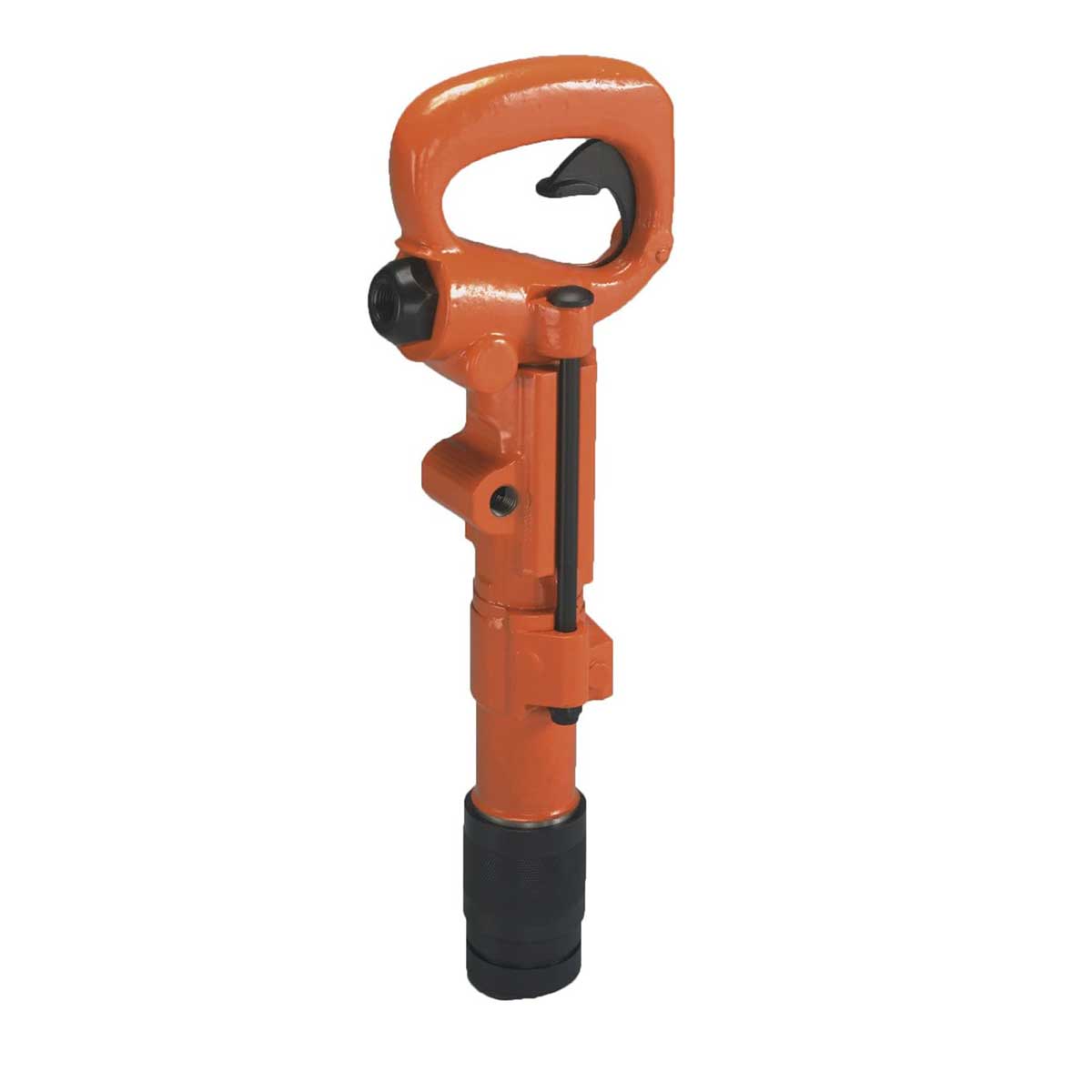

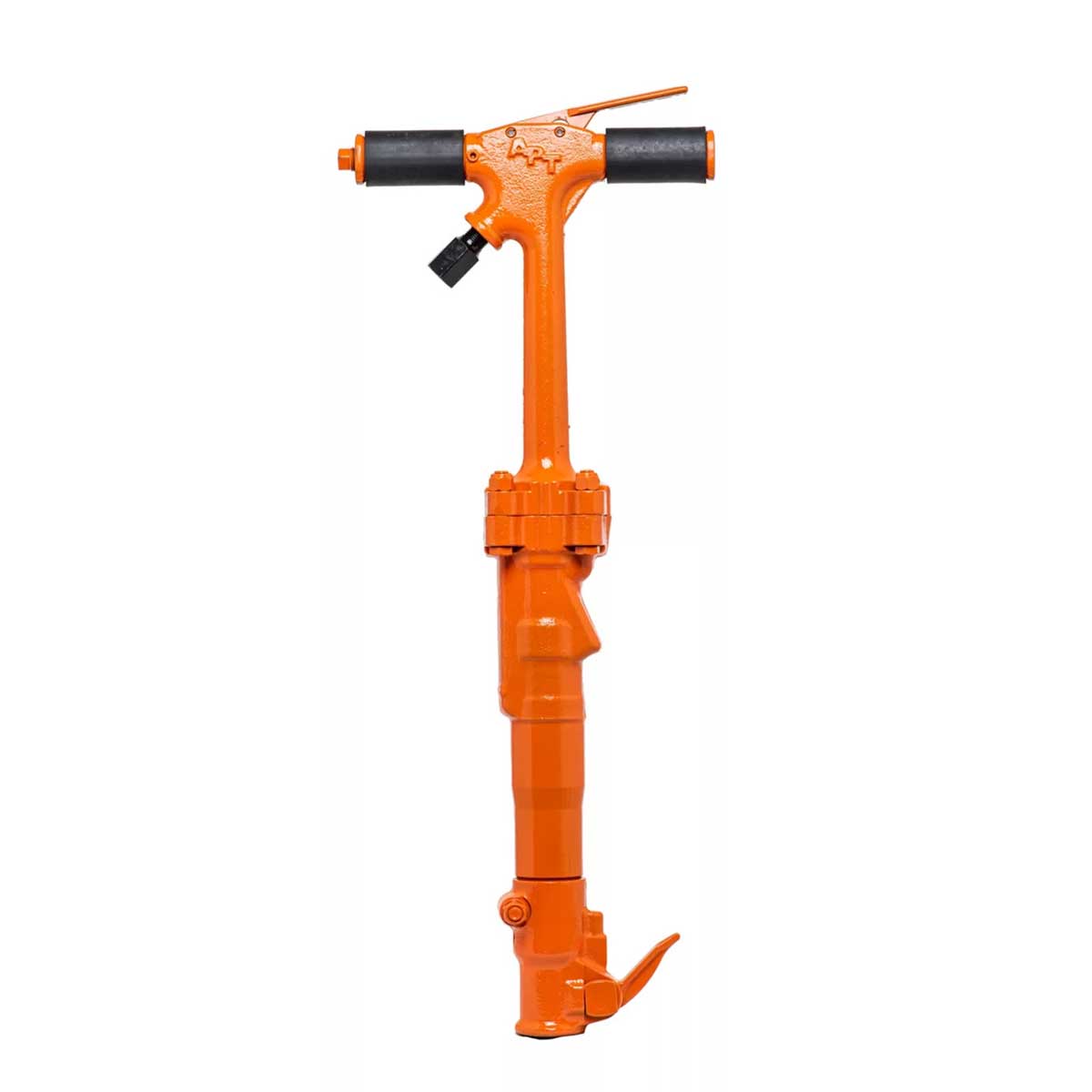

Description APT M119 Clay Digger The APT Model M119 Clay digger is used for digging clay, shale, hard pan and frozen ground. The Model 119 is the perfect tool for digging trenches to lay pipes, phone lines and for foundation work. The only difference between the M117, M118, and M119 tools are the handles. These tools have the same cylinders and the majority of the internal parts in common, which makes them very versatile tools for use in various types of work. Download Manual Model – Part # Units M119 – 5203 M119 – 5204 Chuck Size in 7/8 x 3 – 1/4 1 x 4 – 1/4 Bore Diameter in 1 – 3/4 Stroke in 3 – 3/8 Blows per Minute bpm 1,850 CFM @ 90 psi CFM 34 – 38 Weight lbs 37 Length in 31 Air Inlet NPT in 1/2 FEMALE NPT STANDARD FEATURES Automatic Ball Valve Drop forged, Steel T-style handle Built-in automatic oiler Replaceable chuck bushing Latch type retainer Deep, case hardened forged allot steel cylinder Inside trigger for better control and safety Air Pressure The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts shown for each tool in this catalog. Hose Size APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool. Connecting Hoses Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.
